Front Bumper Impact Bar Replacement

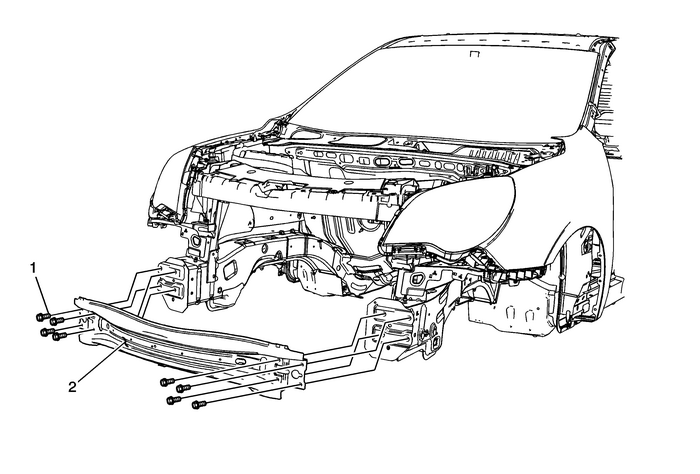

Callout

Component Name

Preliminary Procedure

Remove the bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Front Bumper Impact Bar Bracket Bolt(Qty:-8)

Caution:Refer toFastener Caution.

Tighten

30-Y(22-lb-ft)

2

Front Bumper Impact Bar

Procedure

Disconnect the electrical harness from the impact bar.
