Engine Splash Shield Replacement - Right Side Panels Undertray/Engine Splash Shields/Belly Pan/Underbody Trim

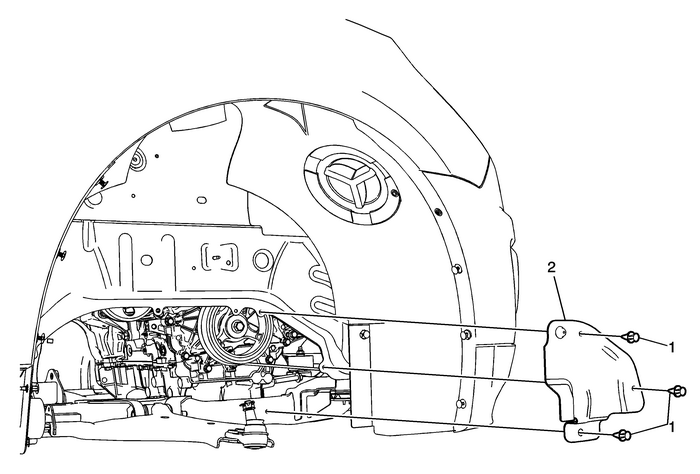

Engine Splash Shield Replacement - Right Side

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle

1

Engine Splash Shield (Qty-3)

2

Engine Splash Shield
