Engine Flywheel Replacement Flywheel/Flexplate

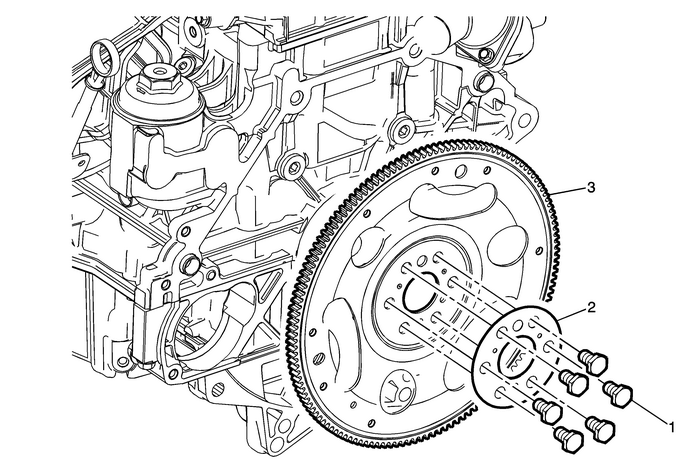

Engine Flywheel Replacement

Callout

Component Name

Preliminary Procedure

Remove the transmission. Refer toTransmission Replacement.

Special Tools

EN-43653Engine Flywheel Holding Tool.

For equivalent regional tools, refer toSpecial Tools.

1

Engine Flywheel Fastener (Qty:-6)

Caution:Refer toFastener Caution.

Note:Discard old bolts and use NEW bolts duringinstallation.

Tighten

53-Y(39-lb-ft)Tighten the bolt an additional 25-degrees.

2

Engine Flywheel Spacer

3

Engine Flywheel Plate

Procedure

Inspect the engine flywheel for the following:

Stress cracks around the engine flywheel .Cracks at welded areas that retain the ring gear onto theengine flywheel.Damaged or missing ring gear teeth.Do not attempt to repair the welded areas that retain thering gear to the engine flywheel.
