Drive Sprocket, Driven Sprocket, and Drive Link Cleaning and Inspection Automatic Transmission Unit

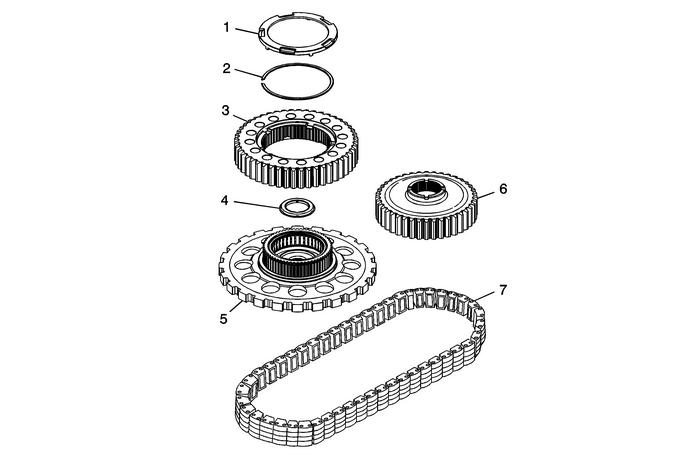

Drive Sprocket, Driven Sprocket, and Drive Link Cleaning and Inspection

Callout

Component Name

1

Drive Sprocket Thrust Washer

2

Drive Sprocket Retainer Ring

3

Drive Sprocket

4

Drive Sprocket Bearing Assembly

5

Park Gear

6

Driven Sprocket

7

Drive Link Assembly
