Chevrolet Equinox Service Manual: Engine Flywheel Removal Flywheel/Flexplate

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Engine Flywheel Removal Flywheel/Flexplate

Special Tools

EN 43653Flywheel Holding Tool

For equivalent regional tools, refer toSpecial Tools

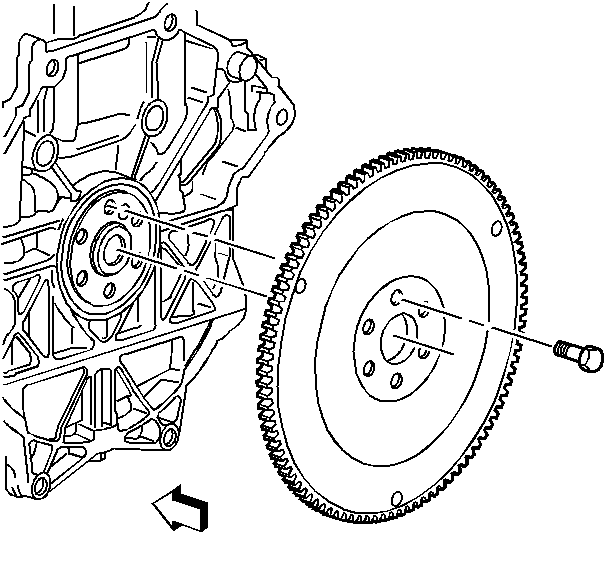

Engine Flywheel Removal Flywheel/Flexplate

Ensure thatEN 43653toolis installed and engaging the flywheel to preventcrankshaft rotation.Remove the flywheel attaching bolts.Remove the flywheel.RemoveEN 43653tool.
