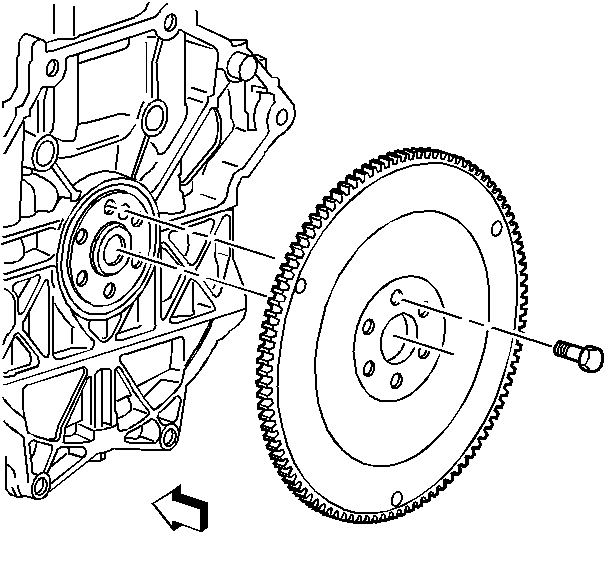

Engine Flywheel Cleaning and Inspection Flywheel/Flexplate

Clean the flywheel in solvent.

Warning:Refer toSafety Glasses Warning.

Dry the flywheel with compressed air.Inspect the flywheel for the following:Damaged ring gear teethStress cracks around theflywheel-to-crankshaft bolt holelocationsWeight saving holes
Engine Flywheel Cleaning and Inspection Flywheel/Flexplate
Cleaning ProcedureClean the flex plate in solvent.Warning:Refer toSafety Glasses Warning.Dry the flex plate with compressed air.Inspection Procedure...__=Inspect the flex plate for the following condi ...
