Engine Coolant Fan Replacement (LEA) Engine Cooling

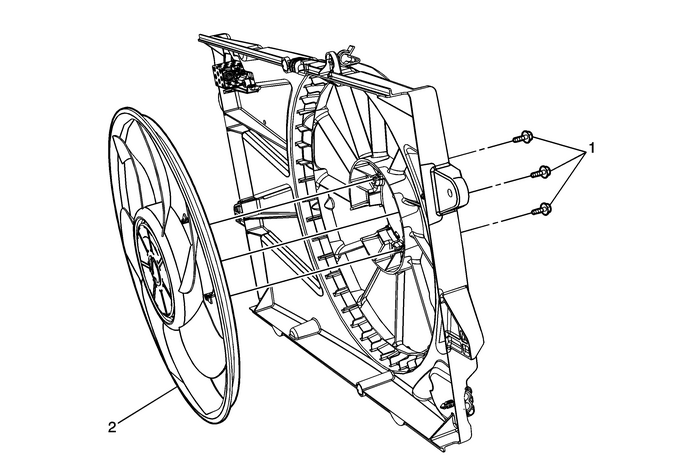

Engine Coolant Fan Replacement

Callout

Component Name

Preliminary Procedures

Remove the engine coolant fan shroud. Refer toEngine Coolant Fan Shroud Replacement

1

Cooling Fan Retainer (Qty-3)

Caution:Refer toFastener Caution.

2

Cooling Fan

Engine Coolant Fan Replacement (LFX) Engine Cooling
Engine Coolant Fan ReplacementCalloutComponent NamePreliminary ProceduresRemove the cooling fan shroud. Refer toCooling Fan and Shroud Replacement.1Cooling Fan Retainer2Cooling Fan ...

Engine Coolant Fan Resistor Replacement Engine Cooling
Engine Coolant Fan Resistor ReplacementCalloutComponent NamePreliminary ProceduresDisconnect the engine coolant fan resistor electricalconnector.1Engine Coolant Fan ResistorProcedureDepress tab on the ...
