Driver or Passenger Seat Back Cushion Heater Replacement Seats

Driver or Passenger Seat Back Cushion Heater Replacement

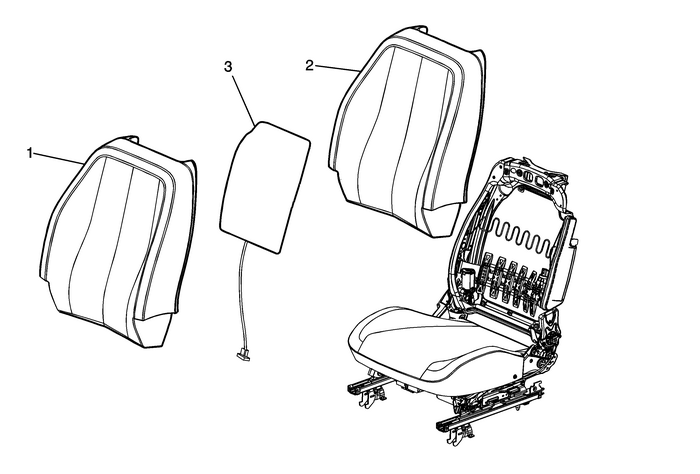

Callout

Component Name

Warning:Refer toSIR Warning.

Preliminary ProcedureRemove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the driver or passenger seat back cushion cover andpad. Refer toDriver or Passenger Seat Back Cover and Pad Replacement.

1

Driver or Passenger Seat Back Cushion Cover

Procedure

Separate the seat cushion from the seat cushion pad.

2

Driver or Passenger Seat Back Cushion Pad

3

Driver or Passenger Seat Back Cushion Heater

ProcedureDisconnect the electrical connector.Remove the heater element leaving the old adhesive stripsintact on the seat cushion. The new seat heater adhesive stripswill be placed over the old adhesive strips.
