Driver or Passenger Seat Back Cushion Frame Replacement Seats

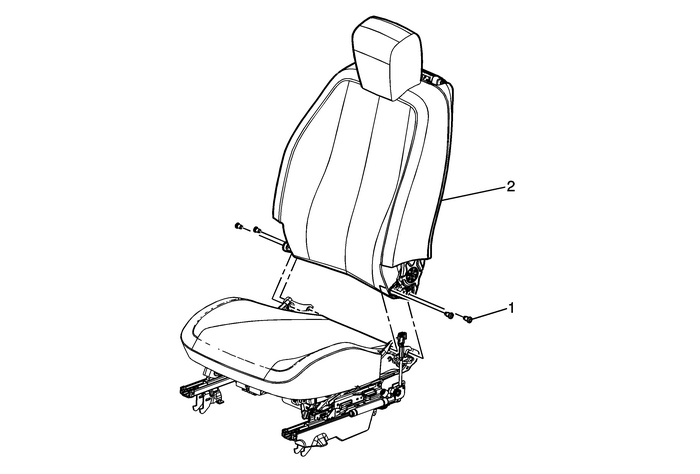

Driver or Passenger Seat Back Cushion Frame Replacement

Callout

Component Name

Preliminary ProcedureRemove the front seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the driver or passenger seat outer adjuster finishcover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.Remove the driver or passenger seat inner recliner finishcover. Refer toDriver or Passenger Seat Inner Recliner Finish Cover Replacement.

1

Front Seat Back Cushion Frame Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

35-Y(26-lb-ft)

Note:When reinstalling bolts add a medium to high thread locker tothe bolt threads.

2

Front Seat Back Cushion Frame

ProcedureDisconnect electrical connectors as needed.If replacing with a new front seat back cushion frame,transfer components as necessary.
