Driver Information Display Replacement Gauges

Driver Information Display Replacement

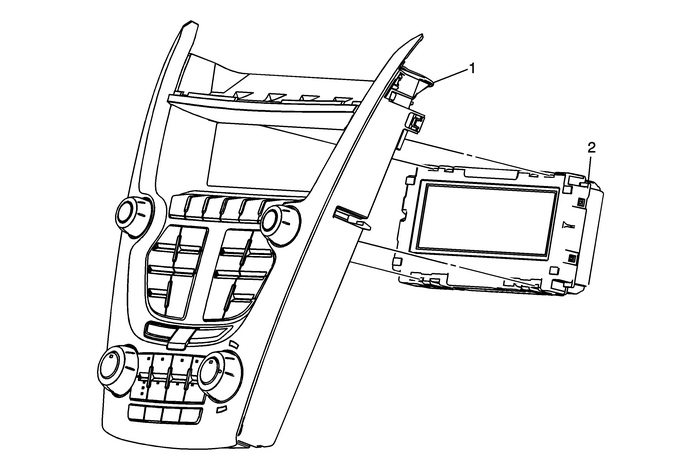

Callout

Component Name

1

Radio Control Assembly

Refer toRadio Control Assembly Replacement.

2

Drivers Information Display

Procedure

Unsnap the drivers information display assembly from theradio control assembly.

Instrument Cluster Description and Operation Gauges
Displays TestCertain instrument cluster features are tested when theignition is turned on in order to verify the features are workingproperly. The following occurs when the ignition is turnedon:The AB ...

Fastener Tightening Specifications - Gauges Gauges
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishInstrument Panel Cluster Fasteners2.5-Y22-lb-in ...
