Dome Lamp Bulb Replacement Lighting Bulbs

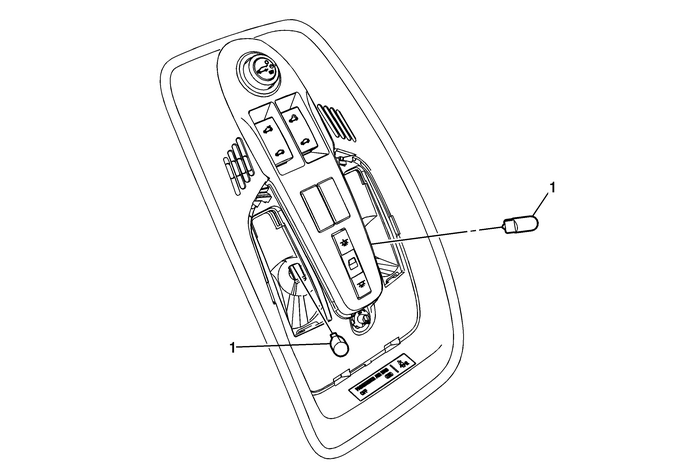

Dome Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the dome lamp lens. Refer toDome and Reading Lamp Lens Replacement.

1

Dome Lamp Bulbs
