Front Upper Grille Replacement (Terrain) Front Grille

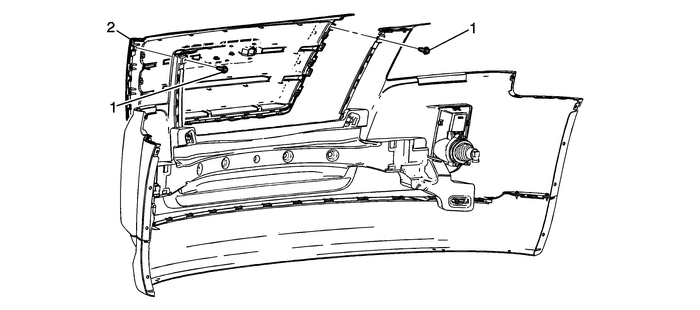

Front Upper Grille Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia energy absorber. Refer toFront Bumper Energy Absorber Replacement.

1

Radiator Upper Grille Screw (Qty-:2)

2

Radiator Upper Grille

Procedure

Release all of the tabs securing the radiator upper grille tothe front bumper fascia.
