Differential Carrier Assembly Mount Replacement Differentials Differential Carrier

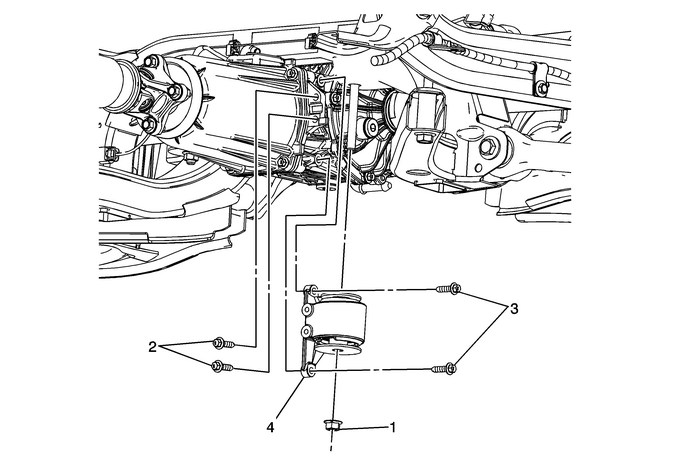

Differential Carrier Assembly Mount Replacement

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Refer toLifting and Jacking the Vehicle.

1

Left Rear Differential Mount Nut

Caution:Refer toFastener Caution.

Tip:Support the rear differential with a jack stand.

Tighten

122-Y(90-lb-ft)

2

Left Rear Differential Mount Bolt (Qty:-2)

Tighten

29-Y(21-lb-ft)

3

Left Rear Differential Mount Bolt (Qty:-2)

Tighten

29-Y(21-lb-ft)

4

Left Rear Differential Mount
