Defroster Valve Replacement

Defroster Valve Replacement

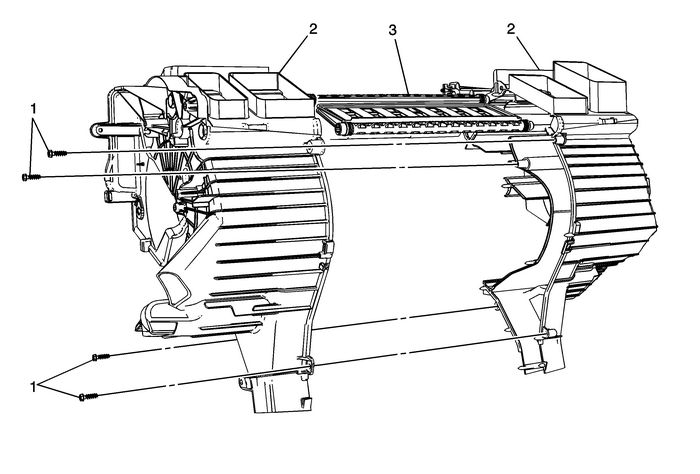

Callout

Component Name

Preliminary ProceduresRemove the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.Disconnect all the electrical connectors from componentsassociated with the HVAC module.Remove any components associated with splitting the airdistribution case.

1

Distribution case fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

2

Split Distribution case

3

Defroster Valve
