Chevrolet Equinox Service Manual: Crankshaft Position Sensor Replacement Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

Chevrolet Equinox Service Manual / Powertrain / Internal Combustion Powertrain Control / Crankshaft Position Sensor Replacement Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

Crankshaft Position Sensor Replacement Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

Crankshaft Position Sensor Replacement

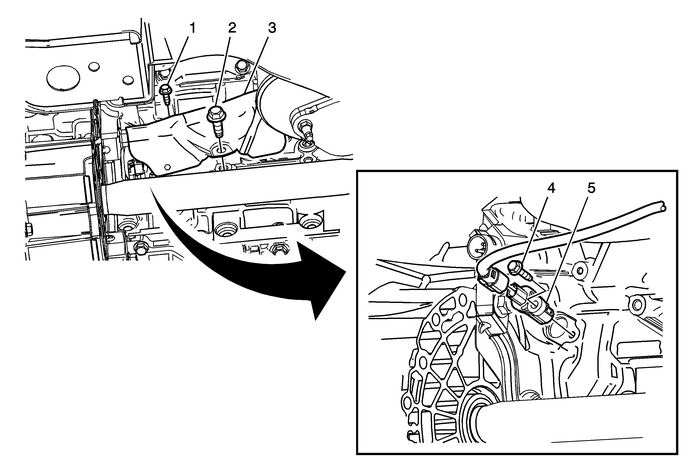

Callout

Component Name

Preliminary ProceduresIf equipped with AWD, remove the right side catalytic converter. Refer toCatalytic Converter Replacement - Right Side.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Bolt

Tighten

58-Y (42-lb-ft)

3

Exhaust Manifold Lower Heat Shield

4

Bolt

Tighten

10-Y (89-lb-in)

5

Crankshaft Position Sensor

Procedure

Disconnect the crankshaft position sensor harness connector.
