Crankshaft Position Sensor Replacement Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

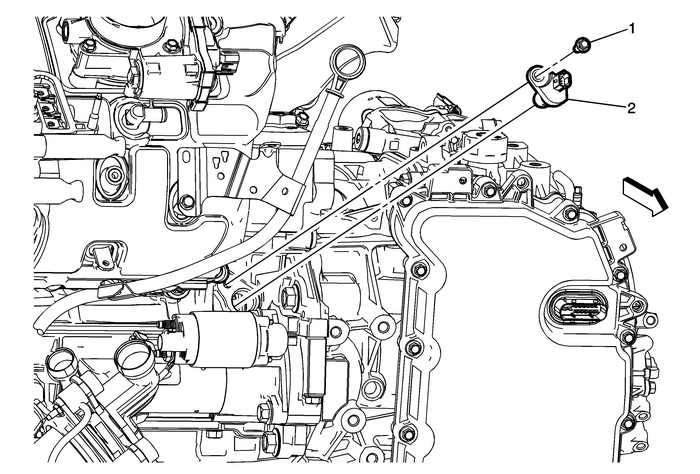

Crankshaft Position Sensor Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Crankshaft Position Sensor Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
