Cargo Tie-Downs Storage and Pockets

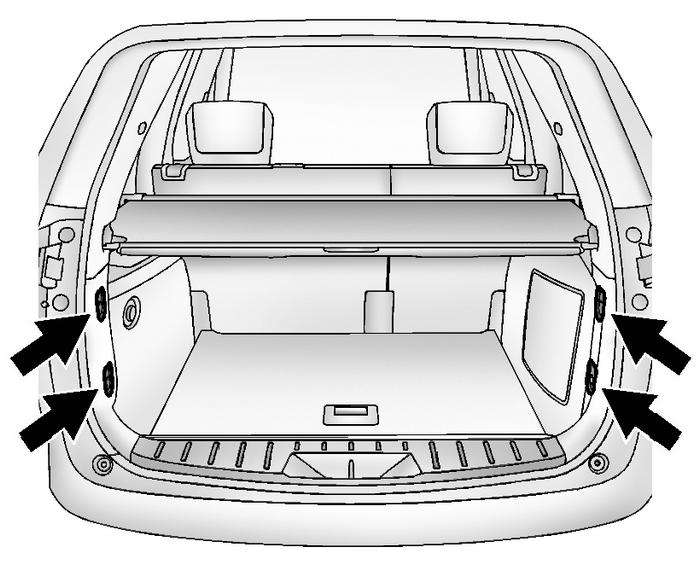

The vehicle may be equipped with four cargo tie-downs located in the rear compartment.
