Blower Motor Replacement

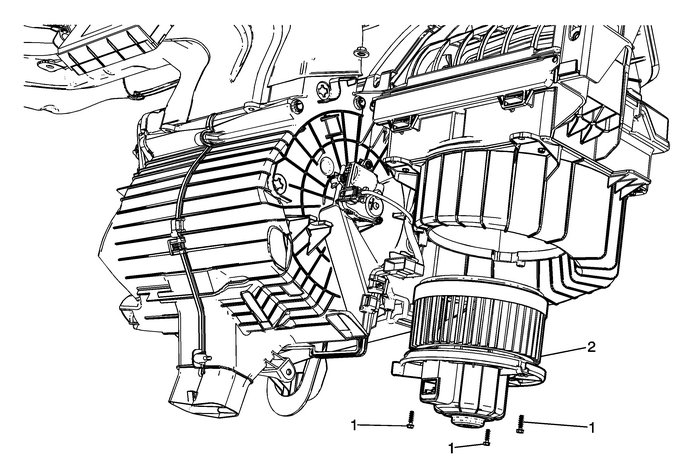

Callout

Component Name

Preliminary ProcedureRemove the instrument panel (I/P) insulator panel - rightside. Refer toInstrument Panel Insulator Panel Replacement - Right Side.Disconnect the blower motor electrical connector.

Blower Motor Fastener (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

Blower Motor

...
