Chevrolet Equinox Service Manual: Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

Removal ProcedureSet the park brake and chock the wheels.

Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

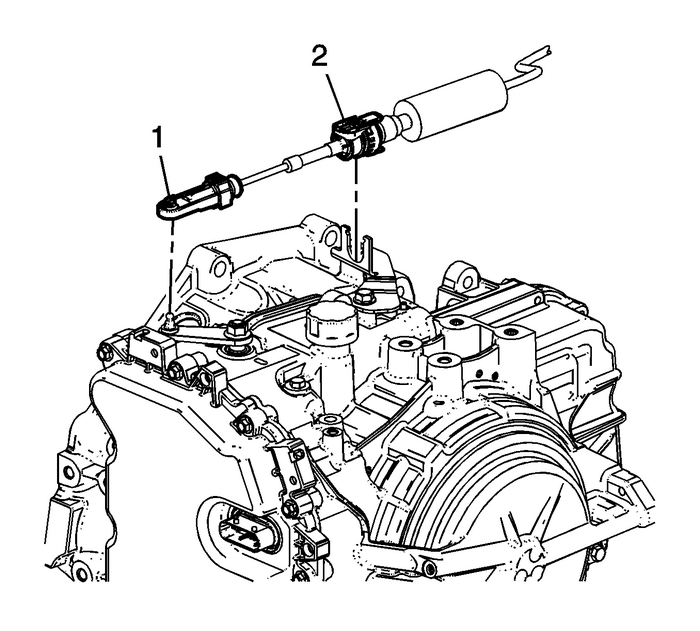

Disconnect the transmission range selector lever cableterminal-(1) from the transmission manual shift leverpin.Press the locking tabs inward in order to release thetransmission range selector lever cable-(2) from thecable bracket.

Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

Warning:Hold the transmission range selector lever while removing orinstalling the lever retaining nut. Failure to hold the lever cancause damage to the transmission internal park system componentswhich could allow the vehicle to roll when placed in the parkposition.

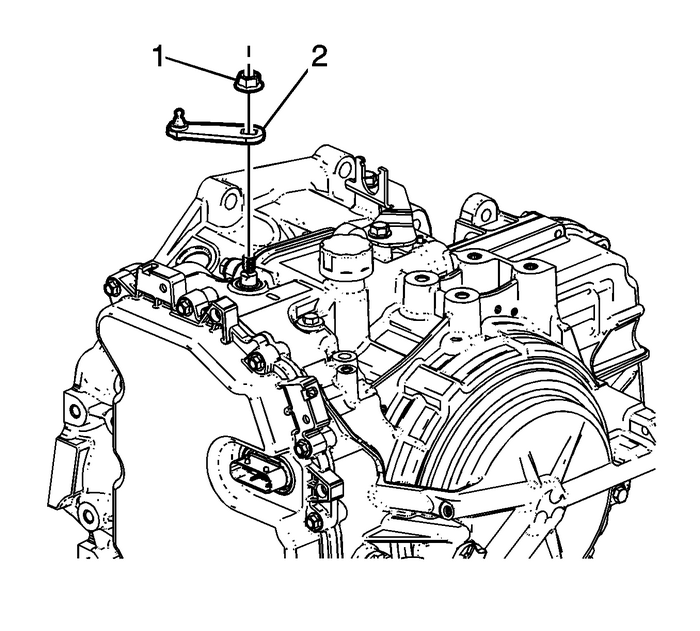

Remove the transmission range selector levernut-(1).Remove the transmission range selectorlever-(2).Installation Procedure

Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

Warning:Hold the transmission range selector lever while removing orinstalling the lever retaining nut. Failure to hold the lever cancause damage to the transmission internal park system componentswhich could allow the vehicle to roll when placed in the parkposition.

Install the transmission range selectorlever-(2).

Caution:Refer toFastener Caution.

Install the transmission range selector levernut-(1) and tighten to30-Y(22-lb-ft).

Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

Install the transmission range selector levercable-(2) to the cable bracket.Connect the transmission range selector lever cableterminal-(1) to the transmission manual shift leverpin.Check the range selector cable adjustment. Refer toRange Selector Lever Cable Adjustment.
