Automatic Transmission Fluid Pressure Test Hole Plug Replacement Automatic Transmission Unit

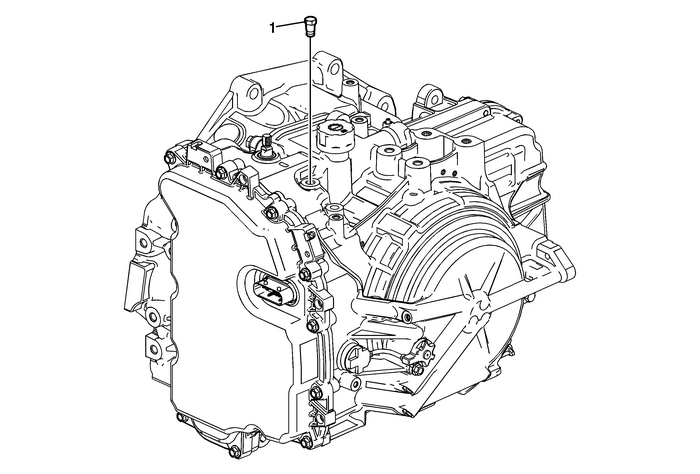

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Callout

Component Name

1

Fluid Pressure Test Plug

Caution:Refer toComponent Fastener Tightening Caution.

Tighten

12-Y(106-lb-in)

A/Trans Case Cover Assembly Automatic Transmission Unit
A/Trans Case Cover Assembly(8)Lube(10)Compensator Feed(22)R1(28)35 Reverse Clutch(43)26 Clutch(47)456 Clutch(51)Compensator Feed Exhaust ...

Automatic Transmission Fluid Pressure Test Hole Plug Replacement Automatic Transmission Unit
Automatic Transmission Fluid Pressure Test Hole Plug ReplacementCalloutComponent NamePreliminary ProcedureRaise the vehicle. Refer toLifting and Jacking the Vehicle.1Fluid Pressure Test PlugCaution:Re ...
