A/Trans Case Cover Assembly

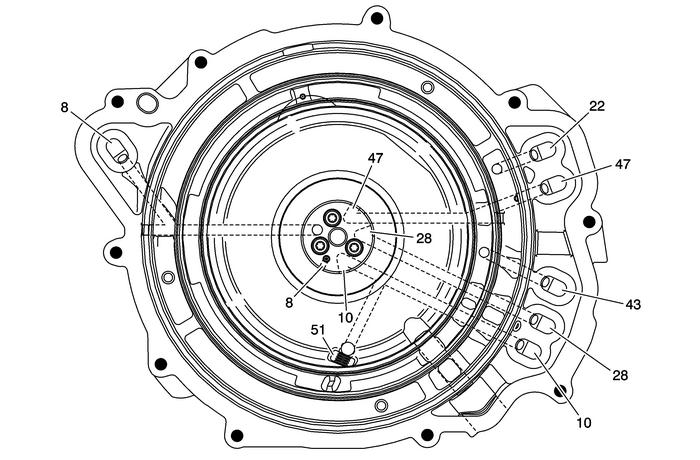

A/Trans Case Cover Assembly Automatic Transmission Unit

(8)Lube
(10)Compensator Feed
(22)R1
(28)35 Reverse Clutch
(43)26 Clutch
(47)456 Clutch
(51)Compensator Feed Exhaust
A/Trans Case Assembly - Torque Converter and Differential Housing Side Automatic Transmission Unit
A/Trans Case Assembly– Torque Converter and Differential Housing Side(2)Line(3)Decrease(5)TCC Release(6)TCC Apply(7)Cooler Feed(8)Lube(53)Void ...

Automatic Transmission Fluid Pressure Test Hole Plug Replacement Automatic Transmission Unit
Automatic Transmission Fluid Pressure Test Hole Plug ReplacementCalloutComponent Name1Fluid Pressure Test PlugCaution:Refer toComponent Fastener Tightening Caution.Tighten12-Y(106-lb-in) ...
