Chevrolet Equinox Service Manual: Air Conditioning Refrigerant Service Valve Core Replacement

Chevrolet Equinox Service Manual / HVAC / Cooling / Air Conditioning Refrigerant Service Valve Core Replacement

Special ToolsJ 39400-AHalogen Leak DetectorJ 46246Valve Core Removal ToolRemoval ProcedureRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.

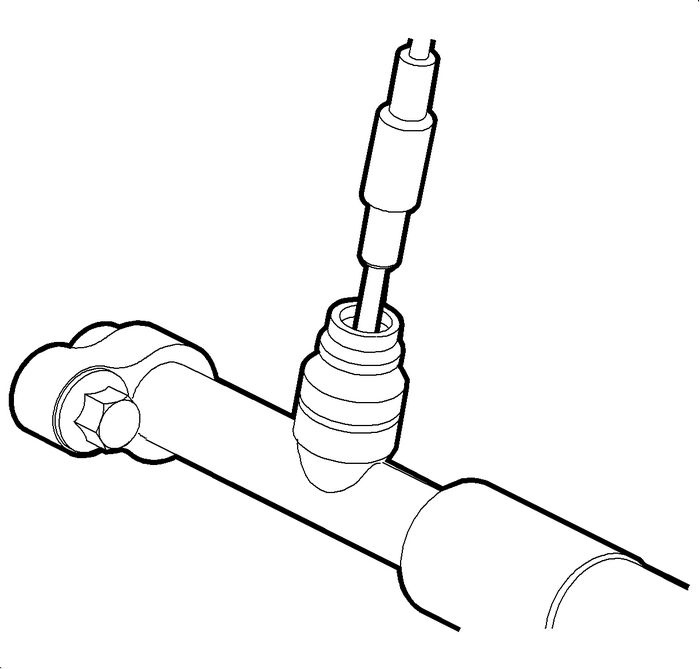

Air Conditioning Refrigerant Service Valve Core Replacement

UseJ 46246Valve Core Removal Toolor equivalent to remove the valve core.Installation Procedure

Air Conditioning Refrigerant Service Valve Core Replacement

UseJ 46246Valve Core Removal Toolor equivalent to install and tighten the valvecore.Evacuate and charge the A/C system. Refer toRefrigerant Recovery and Recharging.

Note:To prevent loss of refrigerant charge, tighten the cap.Replace the cap if the seal is missing or damaged.

Test the affected A/C fittings for leaks usingJ 39400-AHalogen Leak Detector.
