Chevrolet Equinox Owners Manual: Wireless Charging

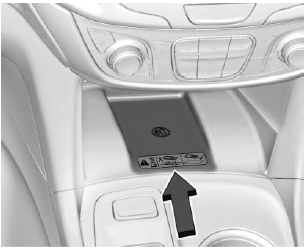

If equipped, the vehicle has wireless charging in the bin below the climate control system. The system wirelessly charges one PMA or Qi compatible mobile device.
To check for phone or other device compatibility:
- In the U.S., see my.chevrolet.com/learn.
- In Canada, see gmtotalconnect.ca.
- Or, see your dealer for details.
| Warning Wireless charging can affect the operation of an implanted pacemaker or other medical devices. If you have one, it is recommended to consult with your doctor before using the wireless charging system. |
The vehicle must be on, in ACC/ ACCESSORY, or in Retained Accessory Power (RAP). The wireless charging feature may not correctly indicate charging when the vehicle is in RAP. See Retained Accessory Power (RAP).
The operating temperature is −20 C (−4 F) to 60 C (140 F) for the charging system andC (32 F) to 35 C (95 F) for the phone.
| Warning Remove all objects from the charging pad before charging your mobile device. Objects, such as coins, keys, rings, paper clips, or cards, between the phone and charging pad will become very hot. On the rare occasion that the charging system does not detect an object, and the object gets wedged between the phone and charger, remove the phone and allow the object to cool before removing it from the charging pad, to prevent burns. |
To charge a mobile device:
- Remove all objects from the charging pad. The system may not charge if there are any objects between the phone and the charging pad.
- Place the mobile device face up on the charging pad aligned against the back of the bin.
- The
will appear on
the
on
the infotainment display. This
indicates that the mobile device
is properly positioned and
charging.
If does not appear on the
infotainment display:
- Remove the phone from the pad and wait three seconds.
- Turn the cell phone 180 degrees before placing/ aligning the phone on the pad again.
