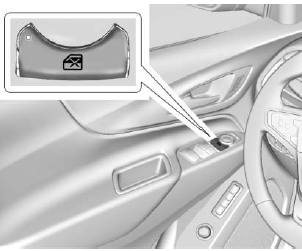

Chevrolet Equinox Owners Manual: Window Lockout
This feature stops the rear door passenger window switches from working.
Press
to engage the rear
window lockout feature. The
indicator light is on when engaged.
Press
again to disengage.
Window Express Movement
All windows can be opened without holding the window switch. Press the switch down fully and quickly release to express open the window.
If equipped, pull the window switch up fully and quickly release to express close the window.
Briefly press or pull the window switch in the same direction to stop that window's express movement.
Power Windows
Warning
Children could be seriously
injured or killed if caught in the
path of a closing window. Never
leave keys in a vehicle with
children. When there are children
in the re ...
Window Automatic Reversal
System
The express-close feature will
reverse window movement if it
comes in contact with an object.
Extreme cold or ice could cause the
window to auto-reverse. The
window will operate normally after
...
