Water Outlet Removal Engine Cooling

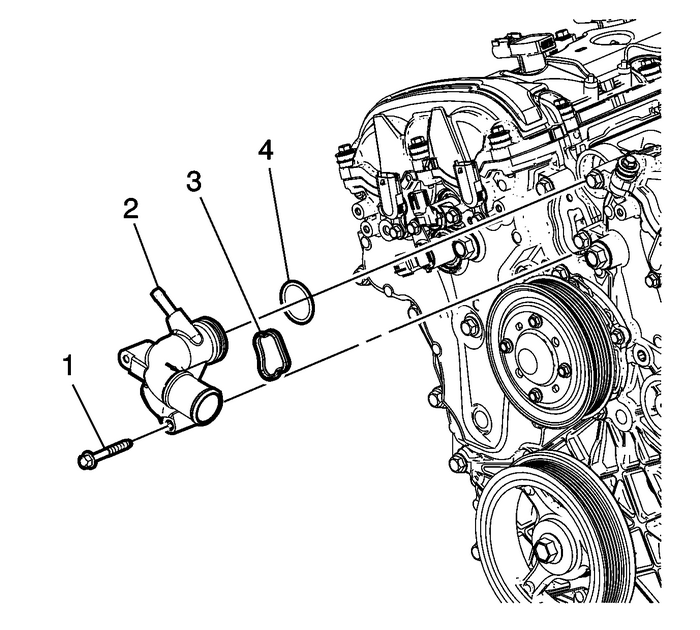

Remove the water outlet bolts-(1).Remove the water outlet-(2).Remove the water outlet seals-(3, 4).
