Water Outlet Installation Engine Cooling

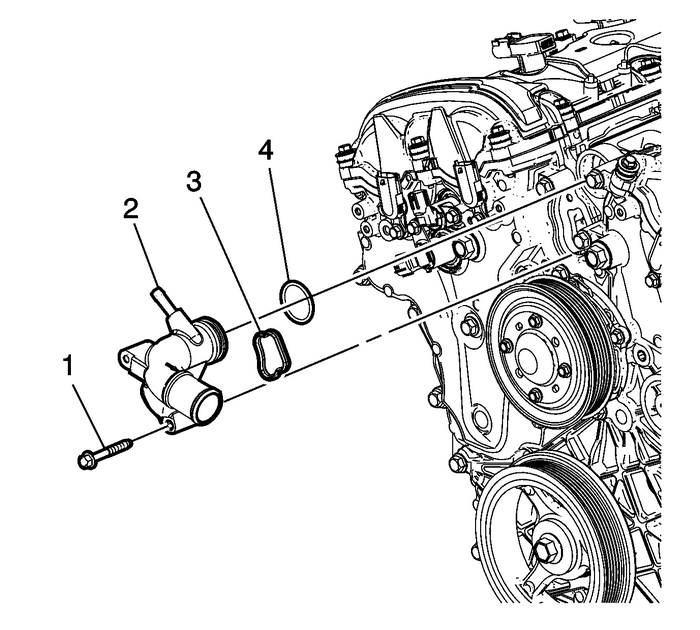

Install the NEW water outlet seals-(3)and-(4).Install the water outlet-(2).

Caution:Refer toFastener Caution.

Install the water outlet bolts-(1) and tighten to10-Y(89-lb-in).
