Chevrolet Equinox Service Manual: Valve Rocker Arm Replacement - Left Side Valvetrain Valve Actuating Assembly Rocker Arms

Chevrolet Equinox Service Manual / Powertrain / Engine / Valve Rocker Arm Replacement - Left Side Valvetrain Valve Actuating Assembly Rocker Arms

Removal ProcedureRemove the applicable camshaft(s). Refer toCamshaft Replacement - Left Side.

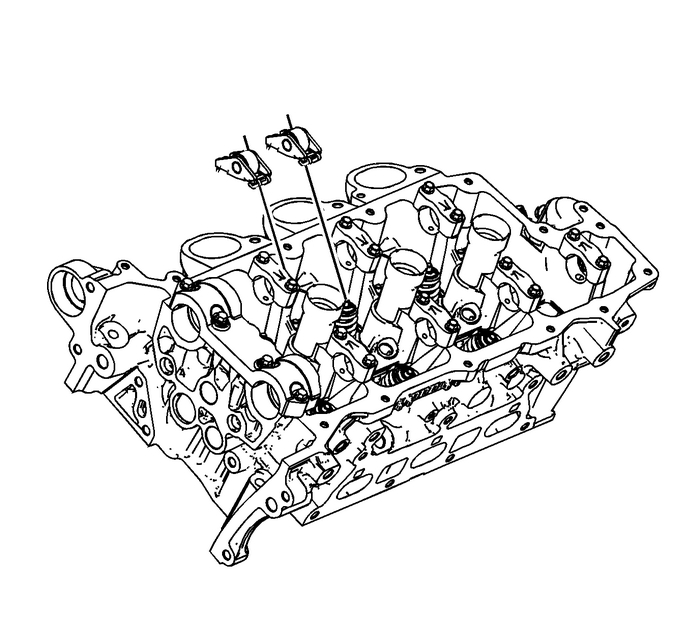

Valve Rocker Arm Replacement - Left Side Valvetrain Valve Actuating Assembly Rocker Arms

Remove the rocker arms.Clean and inspect the camshaft(s) and the rocker arm(s). Replace as necessary. RefertoCamshaft Cleaning and InspectionandValve Rocker Arm Cleaning and Inspection.Clean and inspect the valve lifters and replace as necessary. Refer toValve Lifter Cleaning and InspectionInstallation Procedure

Valve Rocker Arm Replacement - Left Side Valvetrain Valve Actuating Assembly Rocker Arms

Install the rocker arms. Refer toValve Rocker Arm Installation - Left Side.Install the camshaft(s). Refer toCamshaft Replacement - Left Side.
