Chevrolet Equinox Service Manual: Valve Lifter Replacement - Right Side

Chevrolet Equinox Service Manual / Powertrain / Engine / Valve Lifter Replacement - Right Side

Removal ProcedureRemove the applicable camshaft(s). Refer toCamshaft Replacement - Right Side.Remove the rocker arms. Refer toValve Rocker Arm Removal - Right Side.

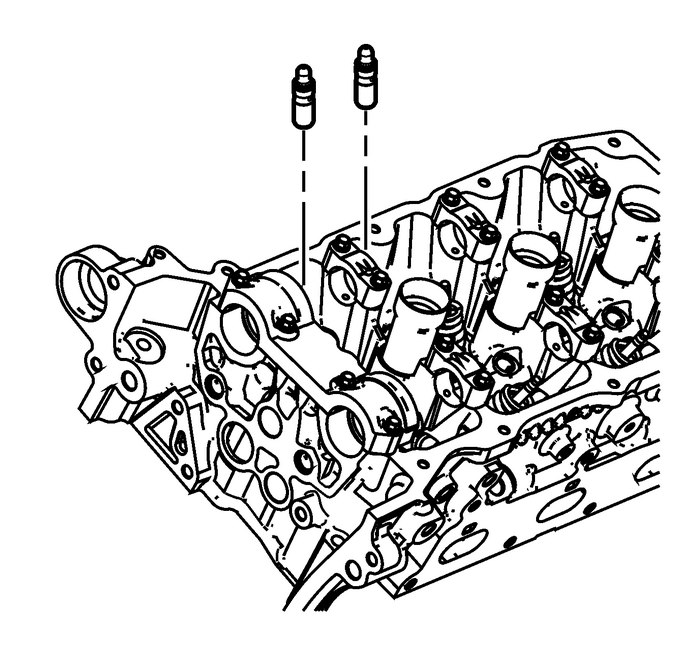

Valve Lifter Replacement - Right Side

Remove the lifters. Refer toValve Lifter Removal - Right Side.Clean and inspect the camshaft(s) and the rocker arm(s) andlifter. Repair or replace as necessary. Refer toCamshaft Cleaning and Inspection,Valve Lifter Cleaning and InspectionandValve Rocker Arm Cleaning and Inspection.Installation Procedure

Valve Lifter Replacement - Right Side

Install the lifters. Refer toValve Lifter Installation - Right Side.Install the rocker arms. Refer toValve Rocker Arm Installation - Right Side.Install the applicable camshaft(s). Refer toCamshaft Replacement - Right Side.
