Chevrolet Equinox Owners Manual: USB Port

Using the USB Port

The infotainment system can play music by connecting an auxiliary device to the USB port.

USB Support If equipped, there are USB ports on the center stack and inside the center console for data and charging, and may have USB charge ports on the rear of the center console. The USB ports use the USB 2.0 standard.

USB Supported Devices

Not all iPods and USB drives are compatible with the USB port.

Make sure the iPod has the latest firmware from Apple for proper operation. iPod firmware can be updated using the latest iTunes application. See www.apple.com/ itunes in the U.S. and Canada only.

For help with identifying your iPod, go to www.apple.com/support in the U.S. and Canada only.

The USB port can play both lower and upper case .mp3, .wma, .ogg, and .wav files stored on a USB storage device.

Supported Apple Devices

To view supported devices in the U.S., see www.my.chevrolet.com \learned.

To view supported devices in Canada, see www.chevroletowner.ca.

For information on supported devices in Mexico, see your dealer.

USB Supported File and Folder Structure

The infotainment system supports:

Connecting a USB Storage Device or iPod/iPhone

To connect a USB storage device, connect the device to the USB port.

To connect an iPod/iPhone, connect one end of the device's cable to the iPod/iPhone and the other end to the USB port.

The iPod/iPhone charges while it is connected to the vehicle if the vehicle is on or in ACC/ ACCESSORY. See Ignition Positions. When the vehicle is turned off, the iPod/iPhone automatically powers off and will not charge or draw power from the vehicle's battery.

For more information on USB usage, see "Audio System Information" following.

Audio System Information

The infotainment system can play the music files contained in the USB storage device or iPod/iPhone products.

Using MP3/WMA/OGG/WAV Files

Using MP3/WMA/OGG/WAV Files

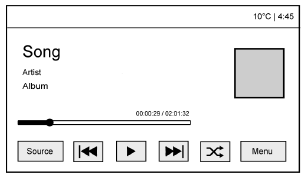

USB Player

Playing Music from a USB Device

Playing Music from a USB Device

If the USB device is already connected:

  1.  Press {.
  2.  Touch AUDIO.
  3.  Touch Source.
  4.  Touch USB.

To stop the USB device and select another media source, touch Source, then select the other source.

To remove the USB device, select another function, then remove the USB device.

Pause

Changing to Next/Previous Files

Returning to the Beginning of the Current File

Touch after five seconds of the playback time.

Scanning Forward or Backward

Touch and hold orduring playback to rewind or fast forward.

Release to resume playback at normal speed.

Playing Files Randomly

Touch during playback.

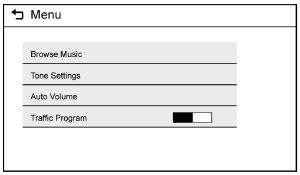

Using the USB Music Menu

Using the USB Music Menu

Browse Music

  1.  Touch Browse Music.
  2.  Touch the desired music.

Tone Settings

Touch Tone Settings. The Tone Settings menu is displayed. See "Tone Settings" under "Radio Controls" in Operation. To stop the device and select another media source, touch Source, then select the other source.

Auto Volume

Touch Auto Volume. The Auto Volume menu is displayed. See "Auto Volume" under "Radio Controls" in Operation.

Traffic Program (If Equipped) Touch On or Off.

MTP (Media Transfer Protocol)

iPod/iPhone Player

This feature is limited to models supporting the iPod/iPhone connection.

Playing Music Files

If the iPod/iPhone is already connected:

  1.  Press .
  2.  Touch AUDIO.
  3.  Touch Source.
  4.  Touch iPod.

To stop the device and select another media source, touch Source, then select the other source.

To remove the device, select another function, then remove the device.

Pause

Changing to Next/Previous Song

Returning to the Beginning of the Current File

Touch after two seconds of the playback time.

Scanning Forward or Backward

Touch and hold orduring playback to rewind or fast forward.

Release to resume playback at normal speed.

Playing Files Randomly

Touch during playback.

Using the iPod Menu

Browse Music

  1.  Touch Browse Music.
  2.  Touch the desired music.

Tone Settings

Touch Tone Settings. The Tone Settings menu is displayed. See "Tone Settings" under "Radio Controls" in Operation.

Auto Volume

Touch Auto Volume. The Auto Volume menu is displayed. See "Auto Volume" under "Radio Controls" in Operation.

Picture System Information

The infotainment system can view picture files stored on a USB storage device and devices that support Media Transfer Protocol (MTP).

Viewing Pictures

  1.  Connect the USB device to the USB port.
  2.  Touch the screen to open to full screen. Touch the screen again to return to the previous screen.

If the USB device is already connected:

  1.  Press .
  2.  Touch GALLERY.

Some features are disabled while the vehicle is in motion.

Viewing a Slide Show

  1.  Touch from the picture screen.
  2.  Touch the screen to cancel the slide show during the slide show playback.

Viewing a Previous or Next Picture

Touch or from the picture screen.

Rotating a Picture

Touch from the picture screen.

Enlarging a Picture

Touch from the picture screen.

Using the USB Picture Menu

  1.  Touch MENU from the picture screen.
  2.  Touch the appropriate menu:
  1.  Touchto exit.
Avoiding Untrusted Media Devices
When using media devices such as CDs, DVDs, Blu-ray Discs, SD cards, USB devices, and mobile devices, consider the source. Untrusted media devices could contain files that affect system operat ...

Auxiliary Devices
Using the Auxiliary Input Jack Settings menus and functions may vary depending on vehicle options. The auxiliary input jack can be used to connect external audio devices such as an iPod, iPhone ...
