Transmission Rear Mount Replacement (FWD) Automatic Transmission Unit

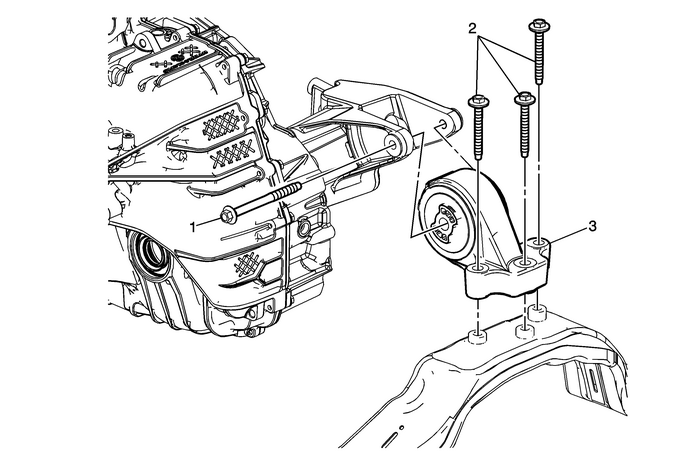

Transmission Rear Mount Replacement

Callout

Component Name

Preliminary ProceduresRemove the right front tire and wheel. Refer toTire and Wheel Removal and Installation.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Support the transmission with a transmission jack.
1	Rear Transmission Mount Through Bolt Caution:Refer toFastener Caution. Tighten 110-Y(81-lb-ft)
2	Rear Transmission Mount Bolt (Qty:-3) Tighten 57-Y(42-lb-ft)
3	Rear Transmission Mount

Transmission Rear Mount Replacement Automatic Transmission Unit

Transmission Rear Mount ReplacementCalloutComponent NameDanger:To avoid any vehicle damage, serious personal injury or deathwhen major components are removed from the vehicle and the vehicleis support ...
