Transmission Rear Mount Replacement Automatic Transmission Unit

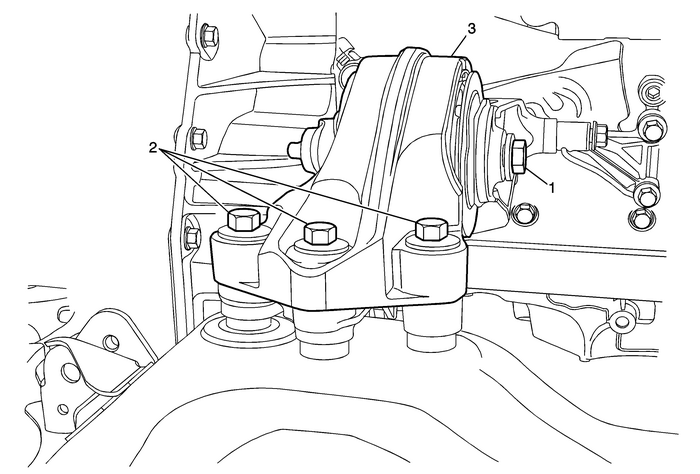

Transmission Rear Mount Replacement

Callout

Component Name

Danger:To avoid any vehicle damage, serious personal injury or deathwhen major components are removed from the vehicle and the vehicleis supported by a hoist, support the vehicle with jack stands atthe opposite end from which the components are being removed andstrap the vehicle to the hoist. Warning:Refer toSafety Glasses Warning. Preliminary ProceduresRaise and suitably support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left front tire and wheel assembly. Refer toTire and Wheel Removal and Installation.
1	Transmission Rear Thru Bolt (Qty:-1) Caution:Refer toFastener Caution. Procedure Support the transmission. Tighten 100-Y(74-lb-ft)
2	Transmission Rear Mount Fastener (Qty:-3) Caution:Refer toFastener Caution. Tighten 57-Y(42-lb-ft)
3	Transmission Rear Mount

Transmission Rear Mount Bracket Replacement (FWD) Automatic Transmission Unit

Transmission Rear Mount Bracket ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear transmission mount. Refer toTransmission Rear Mount Replacement.1Rear Transmission Mount Bracket B ...

Transmission Rear Mount Replacement (FWD) Automatic Transmission Unit

Transmission Rear Mount ReplacementCalloutComponent NamePreliminary ProceduresRemove the right front tire and wheel. Refer toTire and Wheel Removal and Installation.Raise and support the vehicle. Refe ...
