Chevrolet Equinox Service Manual: Transmission Mount Replacement - Left Side Automatic Transmission Unit
Removal ProcedureRemove the battery tray. Refer toBattery Tray Replacement.Remove the underhood electrical center.Support the engine and transmission.

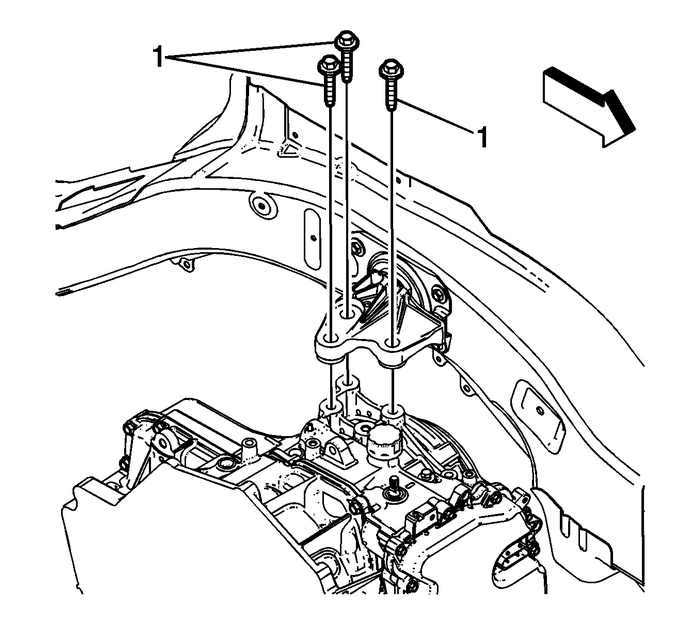

Remove the left transmission mount to transmissionbolts-(1).
Remove the left transmission mount to frame railbolts-(1).Lower the transmission enough to provide clearance for theleft transmission mount.Remove the left transmission mount-(2).Installation Procedure
Install the left transmission mount-(2).
Caution:Refer toFastener Caution.
Install the left transmission mount to frame railbolts-(1) and tighten to27-Y(20-lb-ft).Raise the transmission until the transmission contacts theleft transmission mount.
Install the left transmission mount to transmissionbolts-(1) and tighten to50-Y(37-lb-ft).Remove the engine and transmission support.Install the battery tray. Refer toBattery Tray Replacement.Install the underhood electrical center.
