Chevrolet Equinox Service Manual: Transmission Identification Information Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Transmission Identification Information Automatic Transmission Unit

Transmission Identification Information Automatic Transmission Unit

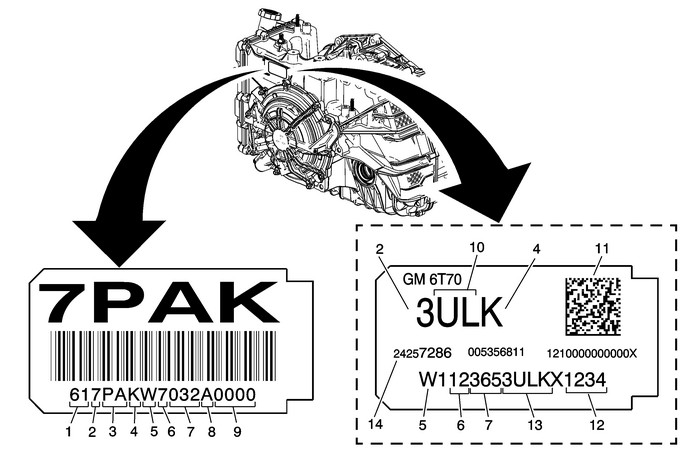

617pakw7032ao00o45672425728600535631121ooooooooooxw1123653ulkx1234

(1)Code for AutomaticTransmission
(2)Model Year
(3)Model for Transmission
(4)Transmission Family
(5)Source Code for Plant
(6)Calendar Year
(7)Julian Date
(8)Shift/Line-(A/B)
(9)Numeric sequence starting at0001-@-12:01-AM each day
(10)Model Code
(11)Machine Readable Matrix
(12)Sequential Serial Number
(13)Broadcast Code
(14)Transmission AssemblyNumber
Source Code for Plant4-–-Ramos Arizpe,MexicoJ-–-Windsor, OntarioS-–-Strasbourg, FranceW-–-Warren, MichiganY-–-Toledo, OhioR-–-Boryeong, KoreaM-–-Yan Tai, Shan Dong,ChinaP-–-San Luis Potosi,MexicoS-–-Silao, Mexico
Transmission Identification Information Automatic Transmission Unit
456789(1)Code for AutomaticTransmission(2)Model Year(3)Model for Transmission(4)Transmission Family(5)Source Code for Plant(6)Calender Year(7)Julian Date(8)Shift/Line (A/B)(9)Numeric sequence starting ...
