Transmission Front Mount Replacement Automatic Transmission Unit

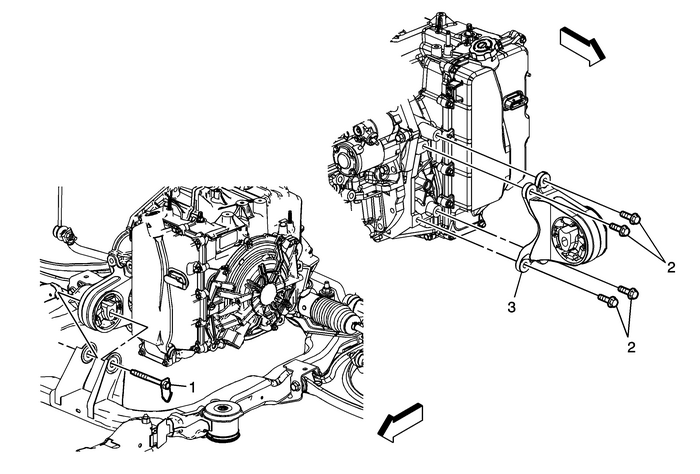

Transmission Front Mount Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Support the transmission with a transmission jack.
1	Front Transmission Mount Thru Bolt Caution:Refer toFastener Caution. Tighten 100-Y(74-lb-ft)
2	Front Transmission Mount Bolt (Qty:-4) Tighten 57-Y(42-lb-ft)
3	Front Transmission Mount
