Chevrolet Equinox Service Manual: Transmission Fluid Pump Cleaning and Inspection Automatic Transmission Unit
Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure. Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component. Preliminary Procedure The fluid pump assembly is not serviceable. | |

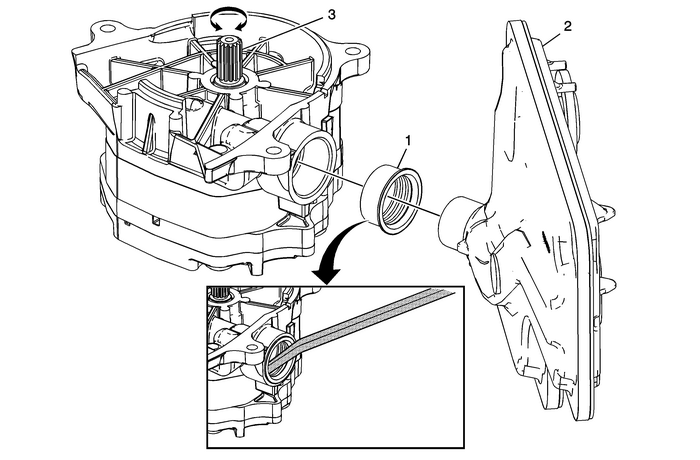

1 | Filter Neck Seal Note:Install a NEW filter neck seal. Special Tools 28585 Snap ring Remover or equivalent For equivalent regional tools, refer toSpecial Tools. |
2 | A/Trans Fluid Filter Assembly Note:Install a NEW fluid filter assembly. |
3 | Fluid Pump Drive Shaft Note: Inspect the fluid pump drive shaft splines for damage or wear.Rotate the fluid pump drive shaft for free operation. |
