Chevrolet Equinox Service Manual: Transfer Case Identification 4WD Transfer Case

Chevrolet Equinox Service Manual / Powertrain / Driveline / Transfer Case Identification 4WD Transfer Case

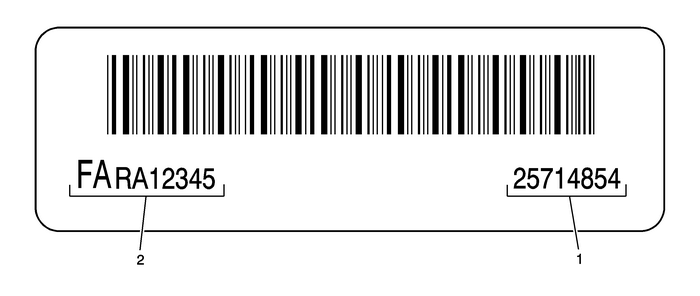

Identification Tag

Transfer Case Identification 4WD Transfer Case

fara1234525714854

(1)GM Part Number
(2)Getrag Serial Number
