Transfer Case Cleaning and Inspection 4WD Transfer Case

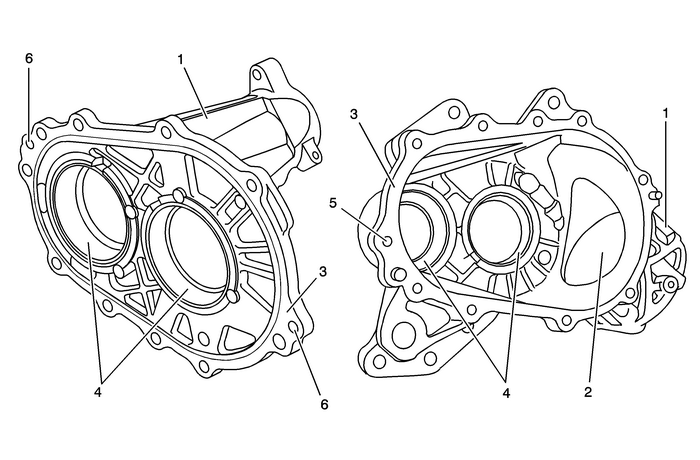

Transfer Case Cleaning and Inspection

Callout

Component Name

Caution:Refer toMachined Surface Damage Caution.

Preliminary ProcedureClean the left and right transfer case housings in cleaning solvent and air dry.The transfer case internal components are not to be serviced. If the internal componentsare damaged, the transfer case must be replaced.

1

Transfer Case– Left and Right

Note:Inspect for cracks, broken areas, or other damage. The transfer case assembly mustbe replaced if damage is found.

2

Transfer Case Rear Output Drive Housing Bore

Note:Repair small scratches or nicks with light sanding.

3

Case Sealing Surface

Note:Repair small scratches or nicks with a soft stone.

4

Transfer Case Bearing Races

Note:Replace the transfer case assembly if a bearing has spun or if cracks are detected.

5

Transfer Case Thread Bolt Holes

Note:Repair any damaged threads.

6

Transfer Case Half Locating Pin Holes
