Transfer Case Brace Replacement Automatic Transmission Unit

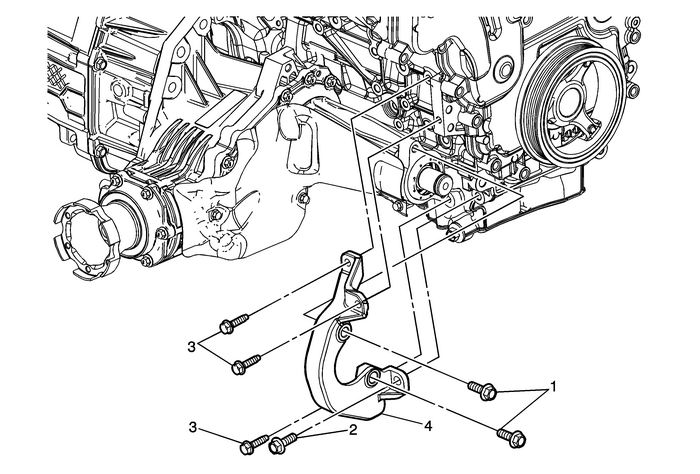

Transfer Case Brace Replacement

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the right wheel drive shaft. Refer toFront Wheel Drive Shaft Replacement.

1

Transfer Case Brace Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tip:Tighten the fasteners in the specified sequentialorder.

Tighten

50-Y(37-lb-ft)

2

Transfer Case Brace Bolt

Tip:Tighten the fasteners in the specified sequentialorder.

Tighten

50-Y(37-lb-ft)

3

Transfer Case Brace Bolt (Qty:-3)

Tip:Tighten the fasteners in the specified sequentialorder.

Tighten

23-Y(17-lb-ft)

4

Transfer Case Brace
