Chevrolet Equinox Service Manual: Torque Converter Housing Cleaning and Inspection Automatic Transmission Unit
Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure. Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component. Caution:Do not use abrasive pads or bristle devices to clean thesealing surfaces. Abrasive pads produce a fine grit that can effecttransmission function. Abrasive pads can also remove enough metalto create oil leaks. Preliminary Procedure Thoroughly clean the torque converter and differentialhousing, including threads, with clean solvent. | |

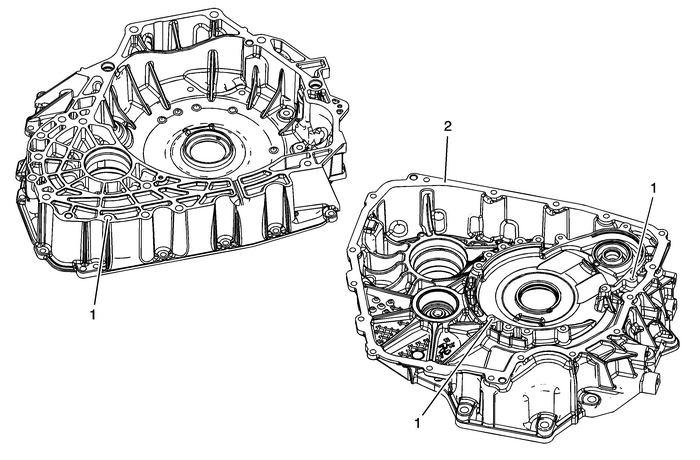

1 | Threaded Holes |
2 | Gasket Sealing Surfaces |
