Torque Converter Fluid Seal Replacement Automatic Transmission Unit

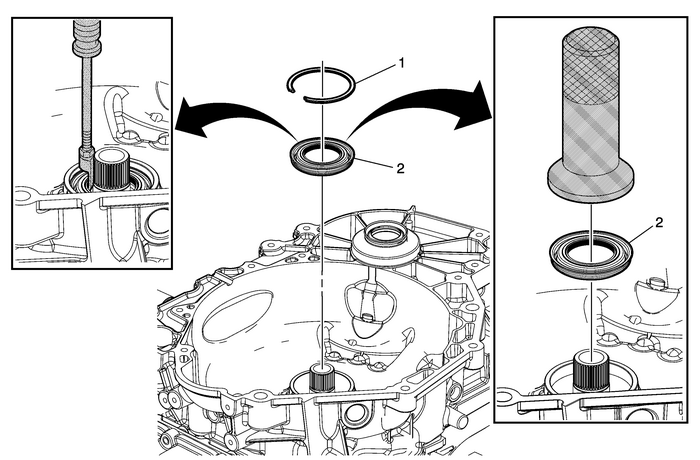

Torque Converter Fluid Seal Replacement

Callout

Component Name

1

Torque Converter Fluid Seal Retainer

2

Torque Converter Fluid Seal

Special ToolsDT-47791-ASeal InstallerDT-6125-BSlide HammerEN-23129Universal Seal Remover

For equivalent regional tools, refer toSpecial Tools.
