Torque Converter Fluid Seal Replacement Automatic Transmission Unit

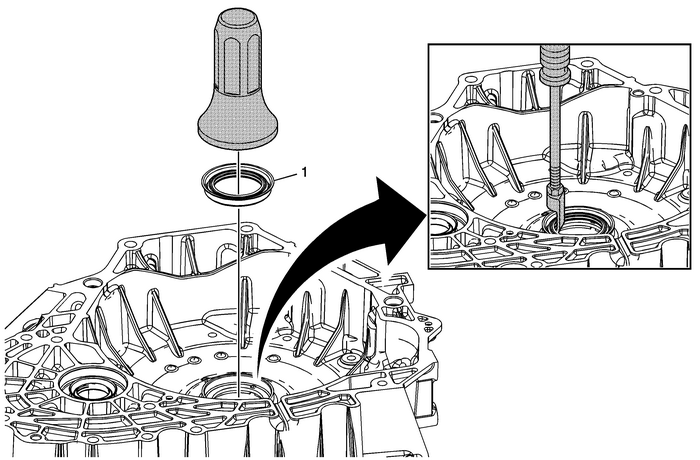

Torque Converter Fluid Seal Replacement

Callout

Component Name

Torque Converter Fluid Seal

Caution:Support the back side of the torque converter housing whileinstalling the seal. Install the seal until it stops moving.Applying excessive pressure to the seal once it is seated couldcause damage to the torque converter housing casting.

Special ToolsDT-23129Universal Seal RemoverDT-49861Seal InstallerGE-6125-1BSlide Hammer with Adapteror equivalent

For equivalent regional tools, refer toSpecial Tools.
