Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal Automatic Transmission Unit

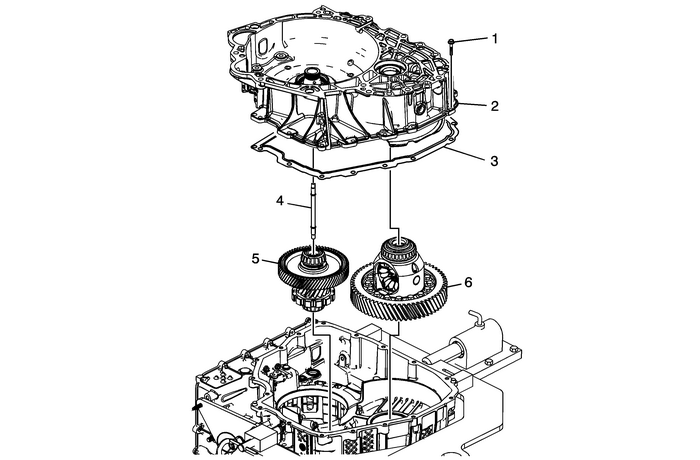

Torque Converter and Differential Housing, Front Differential Transfer Drive Gear,and Front Differential Carrier Removal

Callout

Component Name

1	Torque Converter and Differential Housing Bolt-M8-x-35 (Qty: 17)
2	Torque Converter, Support and A/Trans Fluid Pump Housing Assembly
3	Torque Converter Housing Outer Seal Note:The seal is not reusable.
4	Front Differential Drive Pinion Gear Lube Tube
5	Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly
6	Front Differential Carrier Assembly

Torque Converter and Differential Housing Assembly Disassemble Automatic Transmission Unit

Torque Converter and Differential Housing Assembly DisassembleCalloutComponent Name1Front Differential Carrier Baffle Bolt-M6-x-252Front Differential Carrier Baffle3Front Differential Transfer Drive G ...

Torque Converter and Differential Housing Installation Automatic Transmission Unit

Torque Converter and Differential Housing InstallationCalloutComponent Name1Torque Converter Housing Outer Seal2Torque Converter and Support and A/Trans Fluid Pump HousingAssembly3Torque Converter and ...
