Torque Converter and Differential Housing Assembly Disassemble Automatic Transmission Unit

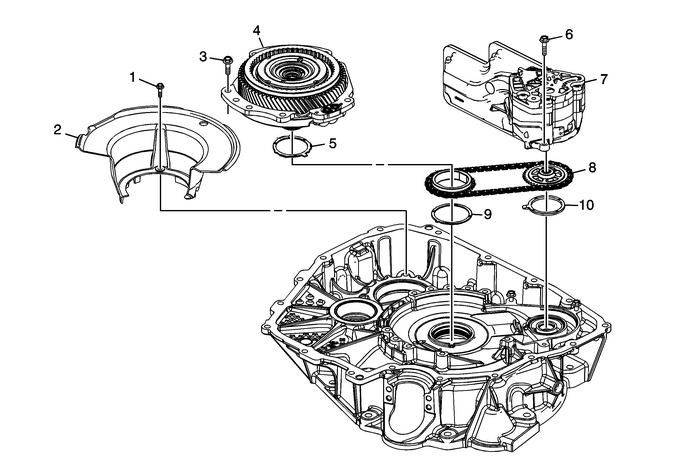

Torque Converter and Differential Housing Assembly Disassemble

Callout

Component Name

1

Front Differential Carrier Baffle Bolt-M6-x-25

2

Front Differential Carrier Baffle

3

Front Differential Transfer Drive Gear Support Bolt-M8-x-25 (Qty: 9)

4

Front Differential Transfer Drive Gear Support Assembly

5

Drive Sprocket Thrust Washer

6

A/Trans Fluid Pump Bolt-M6-x-25 (Qty: 3)

7

A/Trans Fluid Pump Assembly

8

Drive Link Assembly

Note:Link and sprockets will be removed as an assembly.

9

Drive Sprocket Thrust Washer

Note:Drive sprocket thrust washer may be stuck to the torque converter housing.

10

Driven Sprocket Thrust Washer

Torque Converter and Differential Housing - Case Side Automatic Transmission Unit
