Timing Chain Idler Sprocket Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

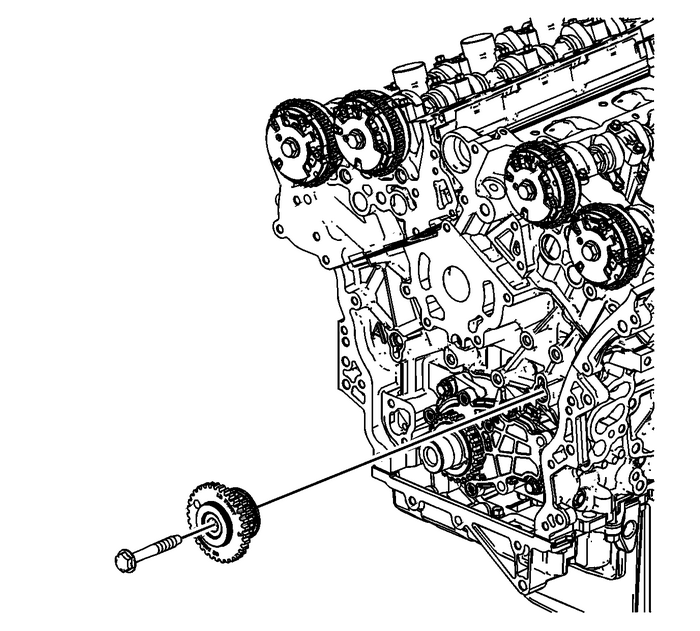

Remove the left camshaft intermediate drive chain idlerbolt.Remove the left camshaft intermediate drive chainidler.
