Chevrolet Equinox Owners Manual: Sunroof

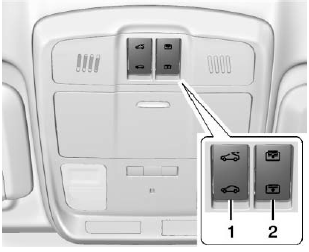

- Sunroof Switch
- Sunshade Switch
If equipped, the sunroof only operates when the ignition is on or in ACC/ACCESSORY, or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP).
Sunroof Switch
Express-Open/Express-Close : To
express-open the sunroof, fully
press and release
(1). Press
the switch again to stop it. To
express-close the sunroof, fully
press and release
(1). Press
the switch again to stop it.
Open/Close (Manual Mode) : To
open the sunroof, press and hold
(1) until the sunroof reaches
the desired position. Press and hold
(1) to close it.
Comfort Stop : The sunroof has a
comfort stop feature that stops the
sunroof from opening fully. Press
and release the rear of
to open
the sunroof to the comfort open
position. Pressing the rear of
again will open the sunroof fully.
If the sunshade is not fully open when the comfort stop feature is pressed the second time, the sunshade will open fully.
Vent : From the closed position,
press
(1) to vent the sunroof.
Sunshade Switch
Express-open/Express-close : To
express-open the sunshade, fully
press and release
(2). To
express-close the sunshade, fully
press and release
(2) . Press
the switch again to stop it.
Open/Close : To open the
sunshade, press and hold
(2)
until the sunshade reaches the
desired position.
When the sunroof is opened, an air deflector will automatically raise.
The air deflector will retract when the sunroof is closed.
