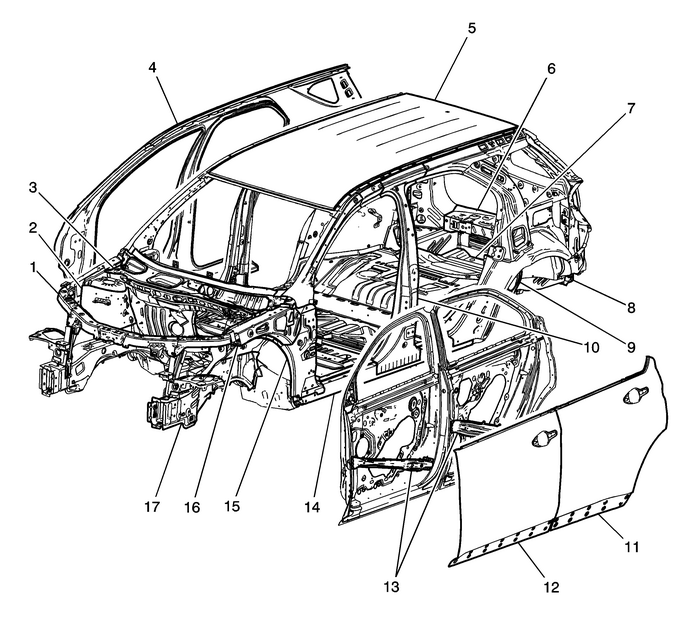

Chevrolet Equinox Service Manual: Structure Identification
1 | Radiator Support Assembly | Mild Steel | Front End Upper Tie Bar Replacement |
2 | Front Wheelhouse Assembly | Mild Steel | Front Wheelhouse Panel Replacement |
3 | Plenum Upper | Mild Steel | Plenum Upper Panel Replacement |
4 | Body Side Outer | Body Side Outer Mild Steel A-Pillar and Roof Rail ReinfsDual Phase Steel | Center Pillar Outer Panel Reinforcement ReplacementQuarter Outer Panel Sectioning |
5 | Roof Outer Panel | Mild Steel | Roof Outer Panel Replacement |
6 | Rear End Panel | Mild Steel | Body Rear End Panel Replacement |
7 | Rear Floor Panel | Mild Steel | Rear Floor Panel Replacement |
8 | Rear Rail Assembly | Mild Steel | Rear Rail ReplacementRail Replacement - Rear Section |
9 | Rear Wheelhouse | Mild Steel | Rear Wheelhouse Inner Panel Replacement |
10 | Center Pillar | Reinf - C/Plr Otr, Reinf - C/Plr Inr Lwr, Reinf - C/PlrCtr Mild Steel C/Plr Inr, Reinf - C/Plr Inr, Reinfs - C/Plr Otr UprDual Phase Steel | Center Pillar Outer Panel Reinforcement Replacement |
11 | Rear Side Door | Mild Steel | Rear Side Door Outer Panel Replacement |
12 | Front Side Door | Mild Steel | Front Side Door Outer Panel Replacement |
13 | Side Door Impact Beams | Ultra High Strength Steel | Not Serviced |
14 | Rocker Panel | Ultra High Strength Steel | Rocker Inner Panel Reinforcement Replacement |
15 | Front Panel | Mild Steel | Front Inner Hinge Pillar Body ReplacementFront Hinge Pillar Body Sectioning |
16 | Upper Rail | Mild Steel | Front Compartment Upper Side Rail Replacement |
17 | Front Rail Assembly | Mild Steel | Front Compartment Front Rail ReplacementFront Compartment Inner Side Rail ReplacementUnderbody Outer Front Side Rail Replacement |
