Steering Wheel Airbag Coil Replacement Restraints Control

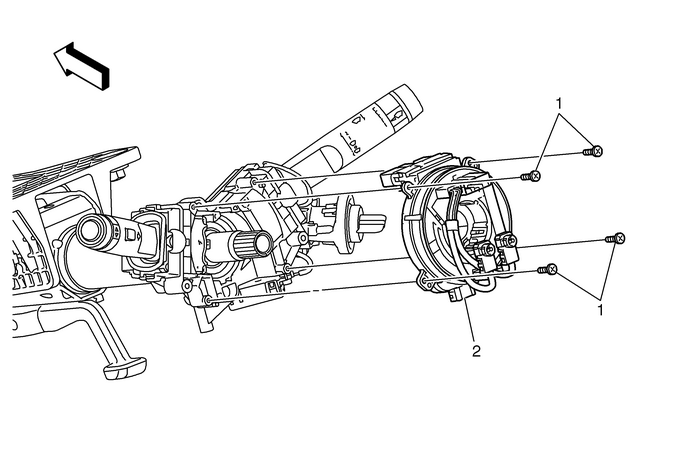

Steering Wheel Airbag Coil Replacement

Callout

Component Name

Preliminary ProceduresRemove the steering wheel. Refer toSteering Wheel Replacement.Remove the steering column shroud. Refer toSteering Column Shroud Replacement.

Inflatable Restraint Steering Wheel Module Coil Bolt (Qty:4)

Caution:Refer toFastener Caution.

Tighten

3-Y(27-lb-in)

Inflatable Restraint Steering Wheel Module Coil

ProcedureDisconnect any electrical connectors as necessary.Transfer the steering angle sensor. Refer toSteering Angle Sensor Replacement.Ensure the coil is centered during installation. If you areinstalling a NEW coil, remove the centering tab AFTER the coil ison the steering column. Refer toAirbag Steering Wheel Module Coil Centering.

Inflatable Restraint Module Handling and Scrapping Restraints Control
