Steering Gear Pipe and Seal Replacement Steering Gear Assembly

Steering Gear Pipe and Seal Replacement

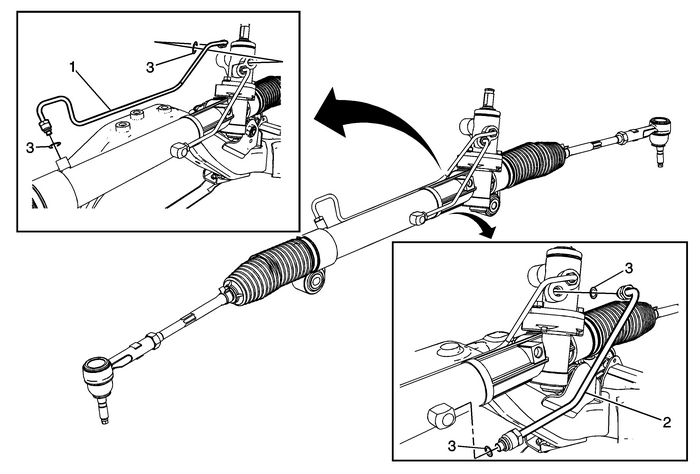

Callout

Component Name

Preliminary Procedure

Remove the hydraulic power steering gear. Refer toSteering Gear Replacement

Steering Gear Pipe

Caution:Refer toFastener Caution.

Tighten

16-Y (12-lb-ft)

Steering Gear Pipe

Tighten

16-Y (12-lb-ft)

Steering Gear Pipe Seal (Qty:-4)

ProcedureRemove the steering gear pipe seals.

Discard the seals.

Install NEW steering gear pipe seals.
