Steering Gear Drive Coupling Replacement Steering Gear Assembly

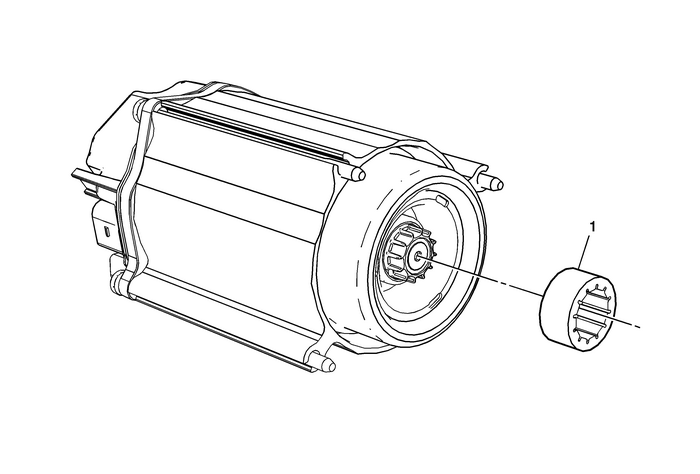

Steering Gear Drive Coupling Replacement

Callout

Component Name

Preliminary Procedure

Remove the power steering assist motor. Refer toPower Steering Assist Motor Replacement.

Steering Gear Drive Coupling

Note:The steering gear drive coupling connects the power steering assist motor to the steeringgear.
