Steering Column Shroud Replacement Steering Wheel and Column

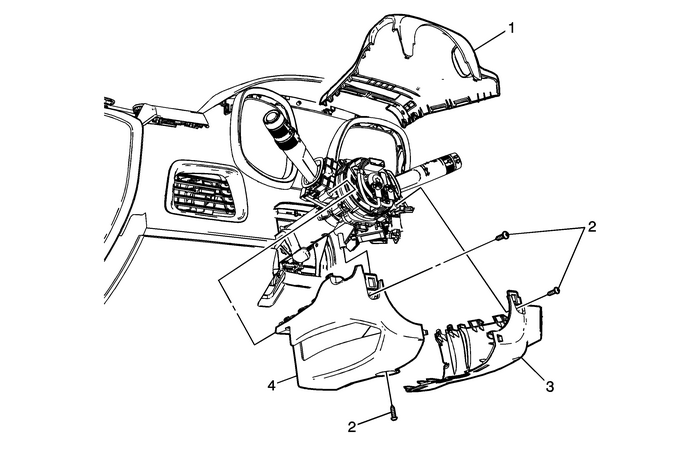

Steering Column Shroud Replacement

Callout

Component Name

Preliminary ProceduresTelescope the steering column to the maximum rearward position.Tilt the steering column to the lowest position.
1	Steering Column Upper Shroud Procedure Disconnect the upper shroud from the steering column seal.
2	Steering Column Lower Trim Cover Fastener (Qty:-3) Caution:Refer toFastener Caution. ProcedureTurn the ignition key to the ON position.Turn the steering wheel in order to access the fasteners.Snap the upper shroud, the lower left shroud, and the lower right shroud togetherbefore installing the fasteners.Tighten 2.5-Y (22-lb-in)
3	Steering Column Lower Right Shroud
4	Steering Column Lower Left Shroud

Steering Column Replacement Steering Wheel and Column

Steering Column ReplacementCalloutComponent NameCaution:With wheels of the vehicle facing straight ahead, secure thesteering wheel utilizing steering column anti-rotation pin,steering column lock, or ...

Steering Gear Drive Coupling Replacement Steering Gear Assembly

Steering Gear Drive Coupling ReplacementCalloutComponent NamePreliminary ProcedureRemove the power steering assist motor. Refer toPower Steering Assist Motor Replacement.1Steering Gear Drive CouplingN ...
